Other Products

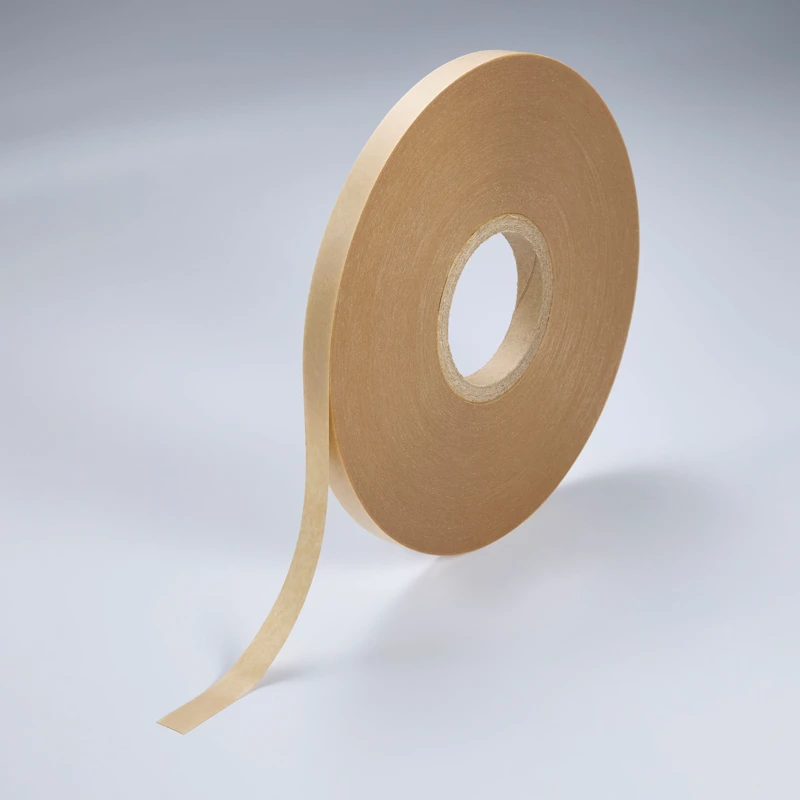

Box Corner Pasting Tape Paper
Tape paper width and length can be custom selected to meet customer needs.
High grade unbleached virgin natural Kraft paper (100% fresh fibers) coated on one side with a layer of hot-melt adhesive.
| Item No. | Img | Material | Dimension | Feature | Application |
|---|---|---|---|---|---|
32610 |
|
Kraft paper (100% fresh fibers) | Standard dimension per roll: Width 19mm x length 300M | - |
. Cartons and gift boxes . Automatic corner pasting machines |

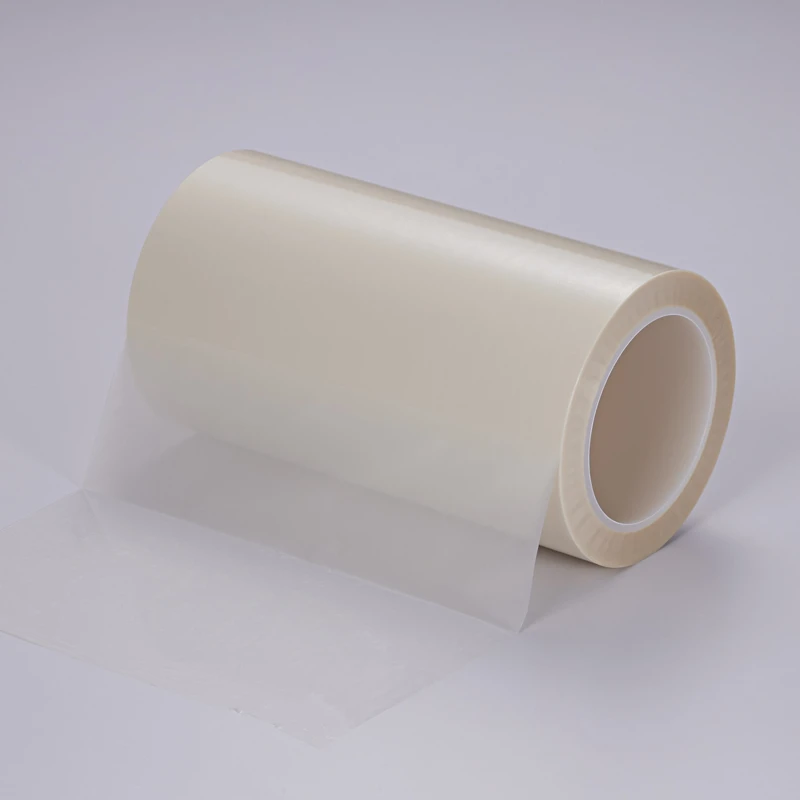

Protective Film
Excellent protection against scratch and abrasion.
High-quality film made of 100% PET tuned to excellent clarity and outstanding surface adhesion.
Film thickness, adhesion force, width, and length can be custom selected to meet customer needs.
| Item No. | Img | Material | Dimension | Feature | Application |
|---|---|---|---|---|---|
Protective Film |
|
PET | Can be customized |
. Great adhesion . Good transparency . Leaves no adhesive residue |
. Touch panel . Flat-panel display . Die-cutting process |
PI Silicone Adhesive Tape
Width and length can be custom selected to meet customer needs.
High-quality film made of 100% PI coated on one side with a layer of silicone adhesive.
Heat resistant, no residue, and excellent insulation. Applicable in 3D printing, soldering, and masking.
| Item No. | Img | Material | Dimension | Feature | Application |
|---|---|---|---|---|---|
KL2560 |
|
100% Polyimide | Can be customized |
. Good insulation . PI film coated with silicone glue . Good stability at high temperature |
. PCB gold fingers . Tin furnace solder protection . High-temperature environment shielding . Insulation protection for electronics and electric heating parts |

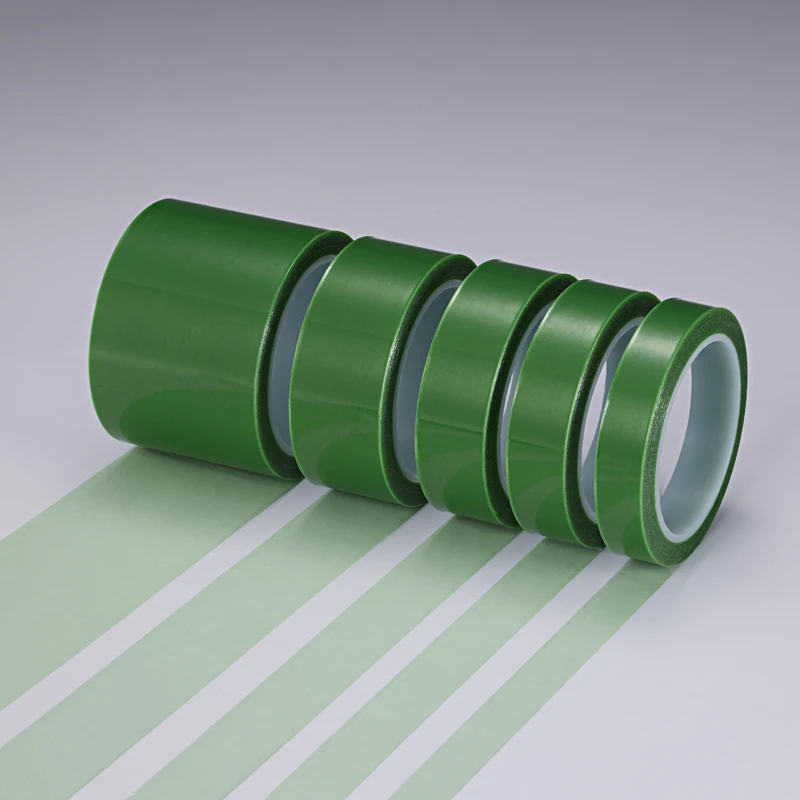

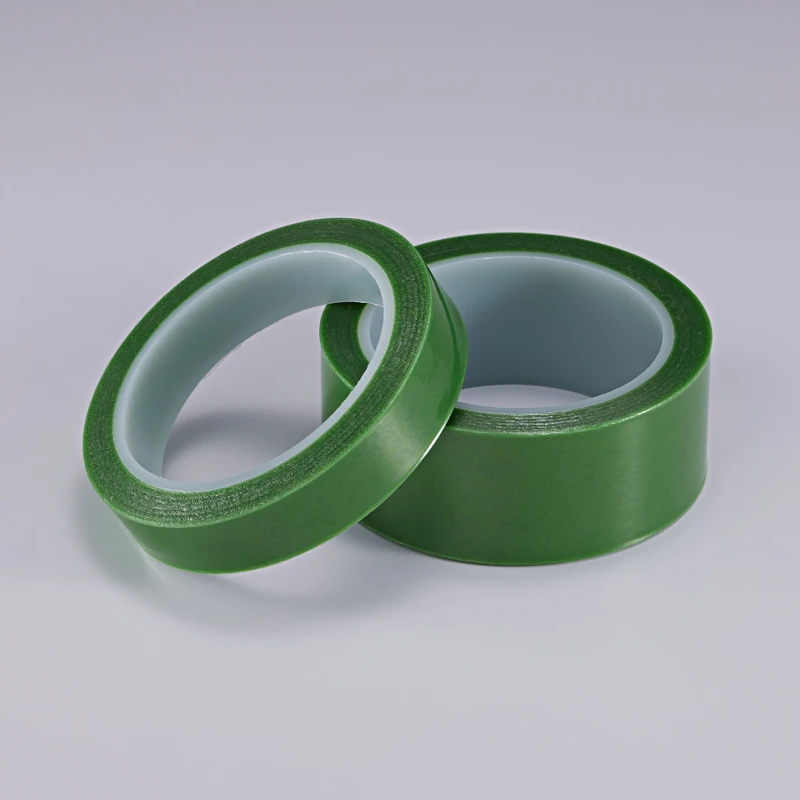

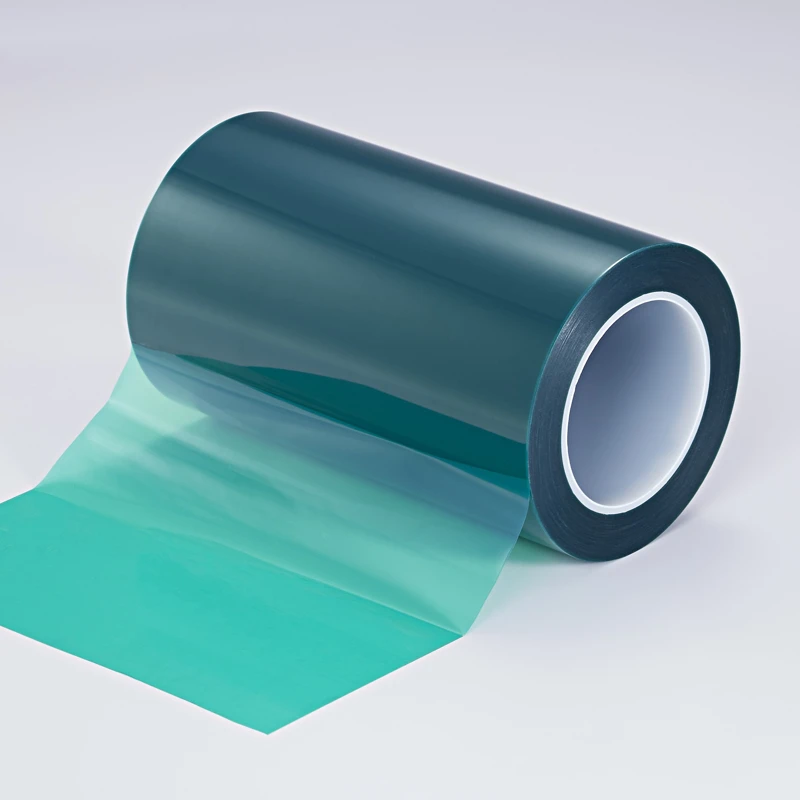

PET Silicone Tape
| Item No. | Img | Material | Dimension | Feature | Application |
|---|---|---|---|---|---|

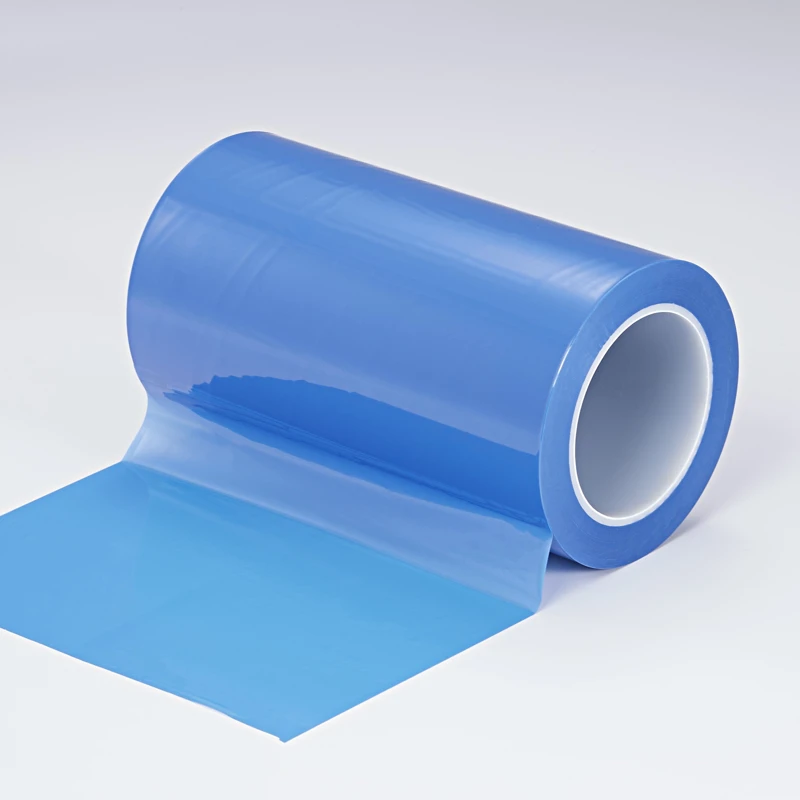

PETSBL0501000 |
|
PET (Blue) | 1100mm x 66M |
. PET thickness 50±5um . Adhesion 1.0±0.2kg/ inch . High-Temperature Resistance . High Tensile Strength . Low Residue . Chemical Resistance . Excellent Electrical Insulation |
. PCB Shielding Protection . SMT Solder Paste Masking . Thermal Pad Fixation . Spray Coating Masking . Surface Protection Film . Die-Cutting Processing |
PETSG0501000 |
|
PET (Green) | 1100mm x 66M |
. PET thickness 50±5um . Adhesion 1.0↑kg/ inch . High-Temperature Resistance . High Tensile Strength . Low Residue . Chemical Resistance . Excellent Electrical Insulation |
. PCB Shielding Protection . SMT Solder Paste Masking . Thermal Pad Fixation . Spray Coating Masking . Surface Protection Film . Die-Cutting Processing |
PETSG0250700 |
|
PET (Green) | 995mm x 66M |
. PET thickness 25±2um . Adhesion 0.7↑kg/ inch . High-Temperature Resistance . High Tensile Strength . Low Residue . Chemical Resistance . Excellent Electrical Insulation |
. PCB Shielding Protection . SMT Solder Paste Masking . Thermal Pad Fixation . Spray Coating Masking . Surface Protection Film . Die-Cutting Processing |
PETSG0250500 |
|
PET (Green) | 995mm x 66M |
. PET thickness 25±2um . Adhesion 0.5↑kg/ inch . High-Temperature Resistance . High Tensile Strength . Low Residue . Chemical Resistance . Excellent Electrical Insulation |
. PCB Shielding Protection . SMT Solder Paste Masking . Thermal Pad Fixation . Spray Coating Masking . Surface Protection Film . Die-Cutting Processing |

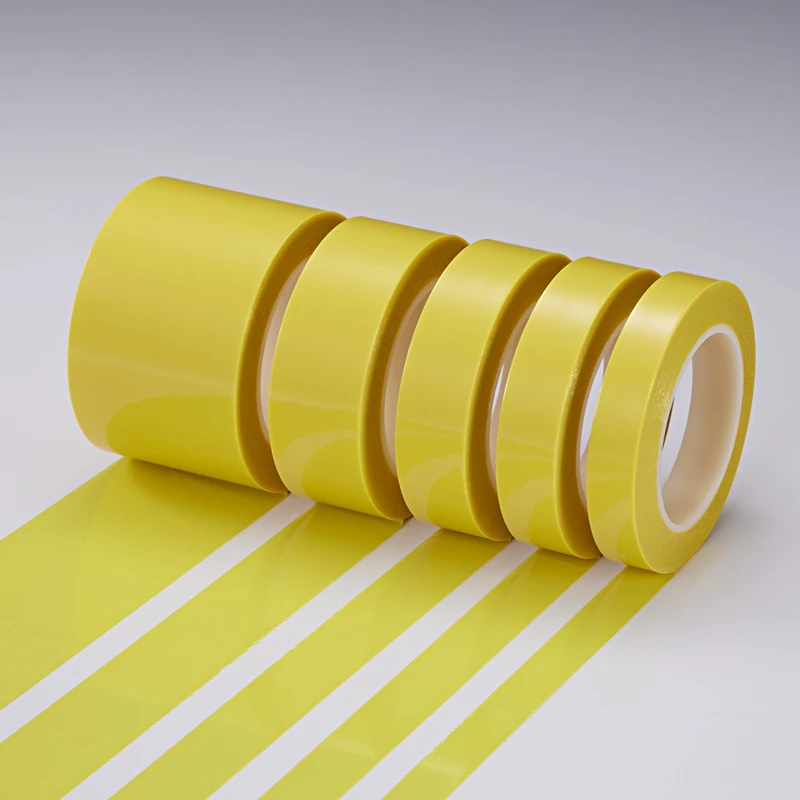

PETSY0250800 |
|
PET (Yellow) | 995mm x 66M |
. PET thickness 25±2um . Adhesion 0.8↑kg/ inch . High-Temperature Resistance . High Tensile Strength . Low Residue . Chemical Resistance . Excellent Electrical Insulation |
. PCB Shielding Protection . SMT Solder Paste Masking . Thermal Pad Fixation . Spray Coating Masking . Surface Protection Film . Die-Cutting Processing |
PETSW0250600 |
|
PET (White) | 995mm x 66M |
. PET thickness 25±2um . Adhesion 0.6↑kg/ inch . High-Temperature Resistance . High Tensile Strength . Low Residue . Chemical Resistance . Excellent Electrical Insulation |
. PCB Shielding Protection . SMT Solder Paste Masking . Thermal Pad Fixation . Spray Coating Masking . Surface Protection Film . Die-Cutting Processing |
